Nhà sản xuất: MINEW

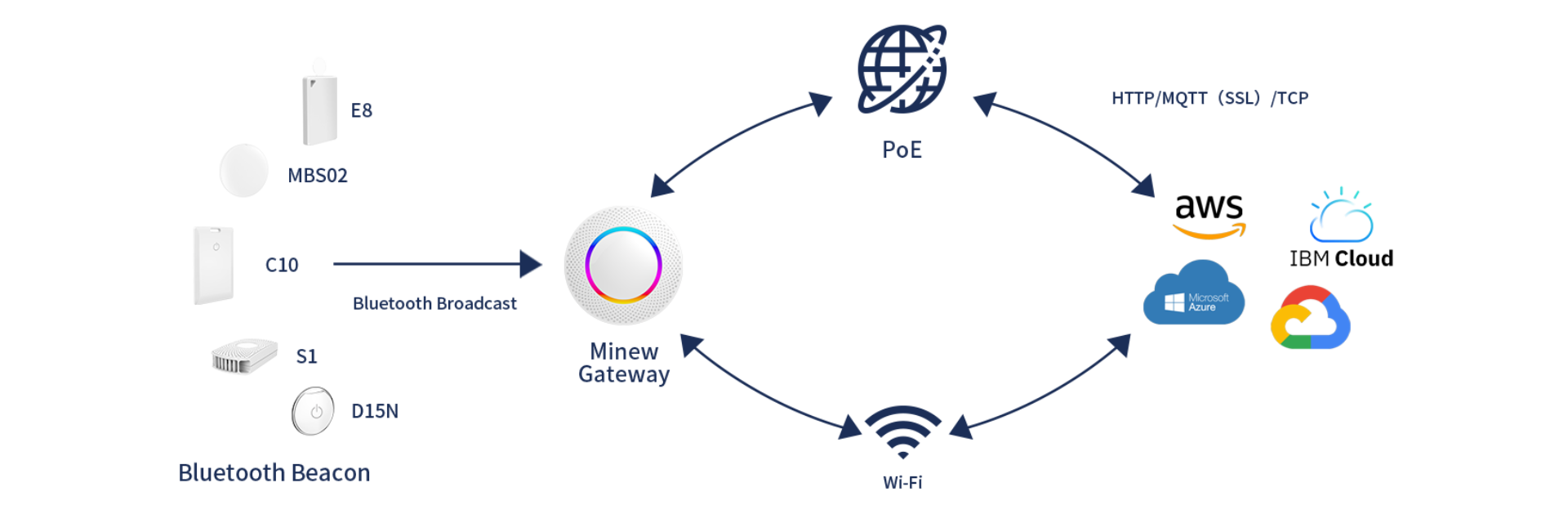

Đó là Gateway nhanh hơn và an toàn hơn với CPU Bluetooth® LE & Wi-Fi mạnh mẽ và mã hóa doanh nghiệp WPA 2.0 để bảo mật và truyền dữ liệu, G1 thu thập dữ liệu từ Bluetooth® LE Beacon, cảm biến và các thiết bị IoT khác, sau đó gửi dữ liệu đó lên đám mây qua Wi-Fi / Ethernet. Đó là một lựa chọn tuyệt vời cho tất cả các ứng dụng trong ngành.
Super Speedy WiFi CPU & Bluetooth 5.0 Chipset
Max. 300-meter Transmission Range
Up to 300Mbps WiFi Data Rate
Support AWS/Azure/Google IoT Cloud Platforms
Bluetooth® LE
WATCH THE VIDEO
.
General Information
Color | White |
Size | 150x150x36mm |
Net Weight | 155g |
Accessory | 1x USB cable, mental fixing and screws |
Power supply (Vcc) | DC 5.0 (+/- 5%) Max. 5.5 Volts |
Storage temperature | -40℃ to 85℃ |
Humidity | Max 95%, non-condensing, relative humidity |
WiFi RF Performance
WiFi Protocols | IEEE 802.11 b/g/n |
WiFi Frequencies | 2.4-2.4835GHz |
Emitting Power | 17dBm (typical)@ 802.11b
11.3dBm (typical)@ 802.11g 8.2dBm (typical)@ 802.11n |
Data Transfer Speed | 802.11n: Up to 300Mbps
802.11g: Up to 54Mbps 802.11n: Up to 11Mbps |
Transfer Speed | 2T2R 300Mbps |
Minimum receive input level | -87dBm(typ. with PER < 8%@11Mbps)
-70dBm(typ. with PER < 10%@54Mbps) -70dBm(typ. with PER < 10%@MCS7) |
Receiving Sensitivity | 270M:-61dBm@10%PER 135M:-65dBm@10%PER 108M:-68dBm@10%PER 54M:-68dBm@10%PER 11M:-85dBm@10%PER 6M:-88dBm@10%PER 1M:-61dBm@10%PER |
Modulate Mode | DBPSK, DQPSK, CCK and OFDM ( BPSK/QPSK/16-QAM/64-QAM) |
Network Protocol | HTTP(SSL/ TLS) / MQTT(SSL / TLS & Proxy) / TCP |
Wireless Encryption | WPA-PSK / WPA2-PSK, WPA-EAP /WPA2-EAP and TKIP |
BLUETOOTH SPECIFICATIONS
Bluetooth Frequency | 2.4-2.4835 GHz |
Bluetooth Modulation | GFSK |
Emitting Power | 18dBm(max) Note: The actual emitting power may vary from country and location depending on its laws and regulations. |
Receiving Sensitivity | -108 dBm @1Mbps, 0.1 %BER |
Numbers of Received Broadcast Packets | About 400 packets per second |
Scan Coverage | About 300 meters of covered radius (open area) |
